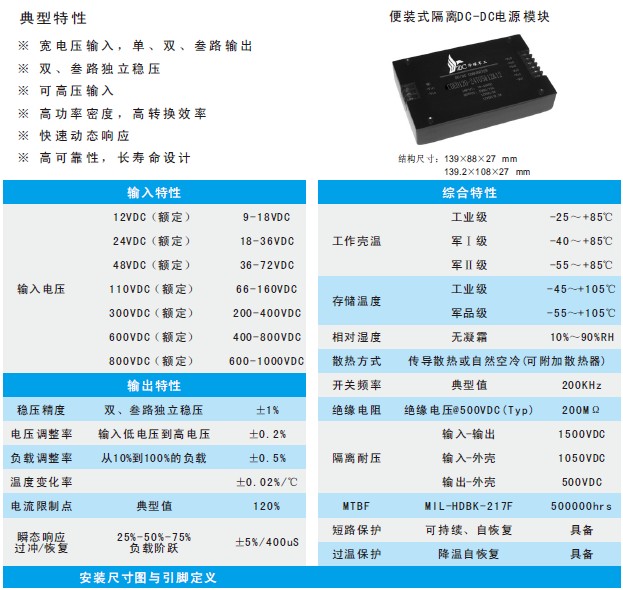

CDED系列
| 产品型号 | 标准输入 | 输入电压 | 输出电压 | 输出电流 | 纹波和噪声 | 效率 |
| CDED150-12S12 | 12 | 9-18 | 12 | 12.5 | 120 | 85 |
| CDED150-12S24 | 12 | 9-18 | 24 | 6.25 | 200 | 85 |
| CDED150-12S48 | 12 | 9-18 | 48 | 3.13 | 300 | 85 |
| CDED150-12D05&12 | 12 | 9-18 | 05&12 | 10&8.33 | 50/120 | 85 |
| CDED150-12D12&12 | 12 | 9-18 | 12&12 | 6.25&6.25 | 120/120 | 86 |
| CDED150-12D12&24 | 12 | 9-18 | 12&24 | 5&3.75 | 120/200 | 86 |
| CDED150-12D24&24 | 12 | 9-18 | 24&24 | 3.13&3.13 | 200/200 | 87 |
| CDED150-12D24&48 | 12 | 9-18 | 24&48 | 2.08&2.08 | 200/300 | 87 |
| CDED200-24S12 | 24 | 18-36 | 12 | 16.67 | 120 | 85 |
| CDED200-24S24 | 24 | 18-36 | 24 | 8.33 | 200 | 86 |
| CDED200-24S48 | 24 | 18-36 | 48 | 4.17 | 300 | 86 |
| CDED150-24D05&12 | 24 | 18-36 | 05&12 | 10&8.33 | 50/120 | 85 |
| CDED150-24D12&12 | 24 | 18-36 | 12&12 | 6.25&6.25 | 120/120 | 85 |
| CDED150-24D12&24 | 24 | 18-36 | 12&24 | 5&3.75 | 120/200 | 85 |
| CDED150-24D24&24 | 24 | 18-36 | 24&24 | 3.13&3.13 | 200/200 | 87 |
| CDED150-24D24&48 | 24 | 18-36 | 24&48 | 2.08&2.08 | 200/300 | 87 |
| CDED150-24T05&12&12 | 24 | 18-36 | 05&12&12 | 6&5&5 | 50/120/120 | 85 |
| CDED150-24T05&15&15 | 24 | 18-36 | 05&15&15 | 6&4&4 | 50/150/150 | 85 |
| CDED150-24T05&12&15 | 24 | 18-36 | 05&12&15 | 6&5&4 | 50/120/150 | 85 |
| CDED200-48S12 | 48 | 36-72 | 12 | 16.67 | 120 | 85 |
| CDED200-48S24 | 48 | 36-72 | 24 | 8.33 | 200 | 86 |
| CDED200-48S48 | 48 | 36-72 | 48 | 4.17 | 300 | 86 |
| CDED150-48D05&12 | 48 | 36-72 | 05&12 | 10&8.33 | 50/120 | 85 |
| CDED150-48D12&12 | 48 | 36-72 | 12&12 | 6.25&6.25 | 120/120 | 85 |
| CDED150-48D12&24 | 48 | 36-72 | 12&24 | 5&3.75 | 120/200 | 85 |
| CDED150-48D24&24 | 48 | 36-72 | 24&24 | 3.13&3.13 | 200/200 | 87 |
| CDED150-48D24&48 | 48 | 36-72 | 24&48 | 2.08&2.08 | 200/300 | 87 |
| CDED150-48T05&12&12 | 48 | 36-72 | 05&12&12 | 6&5&5 | 50/120/120 | 85 |
| CDED150-48T05&15&15 | 48 | 36-72 | 05&15&15 | 6&4&4 | 50/150/150 | 85 |
| CDED150-48T05&12&15 | 48 | 36-72 | 05&12&15 | 6&5&4 | 50/120/150 | 85 |
| CDED200-110S12 | 110 | 66-160 | 12 | 16.67 | 120 | 85 |
| CDED200-110S24 | 110 | 66-160 | 24 | 8.33 | 200 | 86 |
| CDED200-110S48 | 110 | 66-160 | 48 | 4.17 | 300 | 86 |
| CDED150-110D05&12 | 110 | 66-160 | 05&12 | 10&8.33 | 50/120 | 85 |
| CDED150-110D12&12 | 110 | 66-160 | 12&12 | 6.25&6.25 | 120/120 | 85 |
| CDED150-110D12&24 | 110 | 66-160 | 12&24 | 5&3.75 | 120/200 | 87 |
| CDED150-110D24&48 | 110 | 66-160 | 24&48 | 2.08&2.08 | 200/300 | 87 |
| CDED150-300S12 | 300 | 200-400 | 12 | 12.5 | 120 | 85 |
| CDED150-300S24 | 300 | 200-400 | 24 | 6.25 | 200 | 85 |
| CDED150-300S48 | 300 | 200-400 | 48 | 3.13 | 300 | 85 |
| CDED150-300D05&12 | 300 | 200-400 | 05&12 | 10&8.33 | 50/120 | 85 |
| CDED150-300D12&12 | 300 | 200-400 | 12&12 | 6.25&6.25 | 120/120 | 85 |
| CDED150-300D12&24 | 300 | 200-400 | 12&24 | 5&3.75 | 120/200 | 87 |
| CDED150-300D24&48 | 300 | 200-400 | 24&48 | 2.08&2.08 | 200/300 | 87 |
| CDED150-600S12 | 600 | 400-800 | 12 | 12.5 | 120 | 86 |
| CDED150-600S24 | 600 | 400-800 | 24 | 6.25 | 200 | 87 |
| CDED150-600S48 | 600 | 400-800 | 48 | 3.13 | 300 | 87 |
| CDED150-800S12 | 800 | 600-1000 | 12 | 12.5 | 120 | 86 |
| CDED150-800S24 | 800 | 600-1000 | 24 | 6.25 | 200 | 87 |
| CDED150-800S48 | 800 | 600-1000 | 48 | 3.13 | 300 | 87 |
