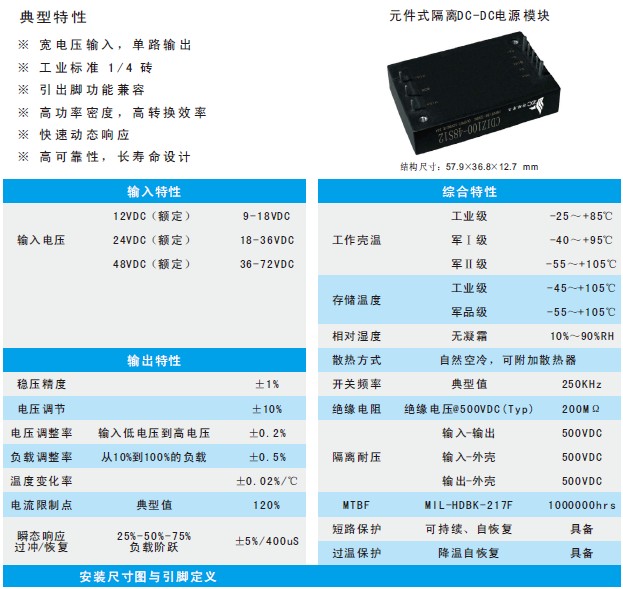

CDIZ系列
| 产品型号 | 标准输入 | 输入电压 | 输出电压 | 输出电流 | 纹波和噪声 | 效率 |
| CDIZ50-12S3.3 | 12 | 9-18 | 3.3 | 15.15 | 50 | 83 |
| CDIZ50-12S05 | 12 | 9-18 | 5 | 10 | 50 | 85 |
| CDIZ50-12S09 | 12 | 9-18 | 9 | 5.56 | 70 | 85 |
| CDIZ50-12S12 | 12 | 9-18 | 12 | 4.17 | 120 | 86 |
| CDIZ50-12S15 | 12 | 9-18 | 15 | 3.33 | 150 | 87 |
| CDIZ50-12S24 | 12 | 9-18 | 24 | 2.08 | 200 | 87 |
| CDIZ50-12S28 | 12 | 9-18 | 28 | 1.79 | 250 | 86 |
| CDIZ75-12S05 | 12 | 9-18 | 5 | 15 | 50 | 85 |
| CDIZ75-12S12 | 12 | 9-18 | 12 | 6.25 | 120 | 85 |
| CDIZ75-12S15 | 12 | 9-18 | 15 | 5 | 150 | 85 |
| CDIZ75-12S24 | 12 | 9-18 | 24 | 3.12 | 200 | 86 |
| CDIZ75-12S28 | 12 | 9-18 | 28 | 2.68 | 250 | 85 |
| CDIZ100-12S12 | 12 | 9-18 | 12 | 8.33 | 120 | 85 |
| CDIZ100-12S15 | 12 | 9-18 | 15 | 6.67 | 150 | 86 |
| CDIZ100-12S24 | 12 | 9-18 | 24 | 4.17 | 200 | 87 |
| CDIZ100-12S28 | 12 | 9-18 | 28 | 3.57 | 250 | 87 |
| CDIZ50-24S3.3 | 24 | 18-36 | 3.3 | 15.15 | 50 | 85 |
| CDIZ50-24S05 | 24 | 18-36 | 5 | 10 | 50 | 88 |
| CDIZ50-24S09 | 24 | 18-36 | 9 | 5.56 | 70 | 87 |
| CDIZ50-24S12 | 24 | 18-36 | 12 | 4.17 | 120 | 87 |
| CDIZ50-24S15 | 24 | 18-36 | 15 | 3.33 | 150 | 86 |
| CDIZ50-24S24 | 24 | 18-36 | 24 | 2.08 | 200 | 88 |
| CDIZ50-24S28 | 24 | 18-36 | 28 | 1.79 | 250 | 87 |
| CDIZ75-24S05 | 24 | 18-36 | 5 | 15 | 50 | 88 |
| CDIZ75-24S12 | 24 | 18-36 | 12 | 6.25 | 120 | 86 |
| CDIZ75-24S15 | 24 | 18-36 | 15 | 5 | 150 | 86 |
| CDIZ75-24S24 | 24 | 18-36 | 24 | 3.12 | 200 | 87 |
| CDIZ75-24S28 | 24 | 18-36 | 28 | 2.68 | 250 | 87 |
| CDIZ75-24S48 | 24 | 18-36 | 48 | 1.56 | 300 | 88 |
| CDIZ100-24S12 | 24 | 18-36 | 12 | 8.33 | 120 | 85 |
| CDIZ100-24S15 | 24 | 18-36 | 15 | 6.67 | 150 | 86 |
| CDIZ100-24S24 | 24 | 18-36 | 24 | 4.17 | 200 | 86 |
| CDIZ100-24S28 | 24 | 18-36 | 28 | 3.57 | 250 | 87 |
| CDIZ50-48S3.3 | 48 | 36-72 | 3.3 | 15.15 | 50 | 85 |
| CDIZ50-48S05 | 48 | 36-72 | 5 | 10 | 50 | 88 |
| CDIZ50-48S09 | 48 | 36-72 | 9 | 5.56 | 70 | 87 |
| CDIZ50-48S12 | 48 | 36-72 | 12 | 4.17 | 120 | 87 |
| CDIZ50-48S15 | 48 | 36-72 | 15 | 3.33 | 150 | 86 |
| CDIZ50-48S24 | 48 | 36-72 | 24 | 2.08 | 200 | 88 |
| CDIZ50-48S28 | 48 | 36-72 | 28 | 1.79 | 250 | 87 |
| CDIZ75-48S05 | 48 | 36-72 | 5 | 15 | 50 | 88 |
| CDIZ75-48S12 | 48 | 36-72 | 12 | 6.25 | 120 | 86 |
| CDIZ75-48S15 | 48 | 36-72 | 15 | 5 | 150 | 86 |
| CDIZ75-48S24 | 48 | 36-72 | 24 | 3.12 | 200 | 87 |
| CDIZ75-48S28 | 48 | 36-72 | 28 | 2.68 | 250 | 87 |
| CDIZ75-48S48 | 48 | 36-72 | 48 | 1.56 | 300 | 88 |
| CDIZ100-48S12 | 48 | 36-72 | 12 | 8.33 | 120 | 85 |
| CDIZ100-48S15 | 48 | 36-72 | 15 | 6.67 | 150 | 86 |
| CDIZ100-48S24 | 48 | 36-72 | 24 | 4.17 | 200 | 86 |
| CDIZ100-48S28 | 48 | 36-72 | 28 | 3.57 | 250 | 87 |
